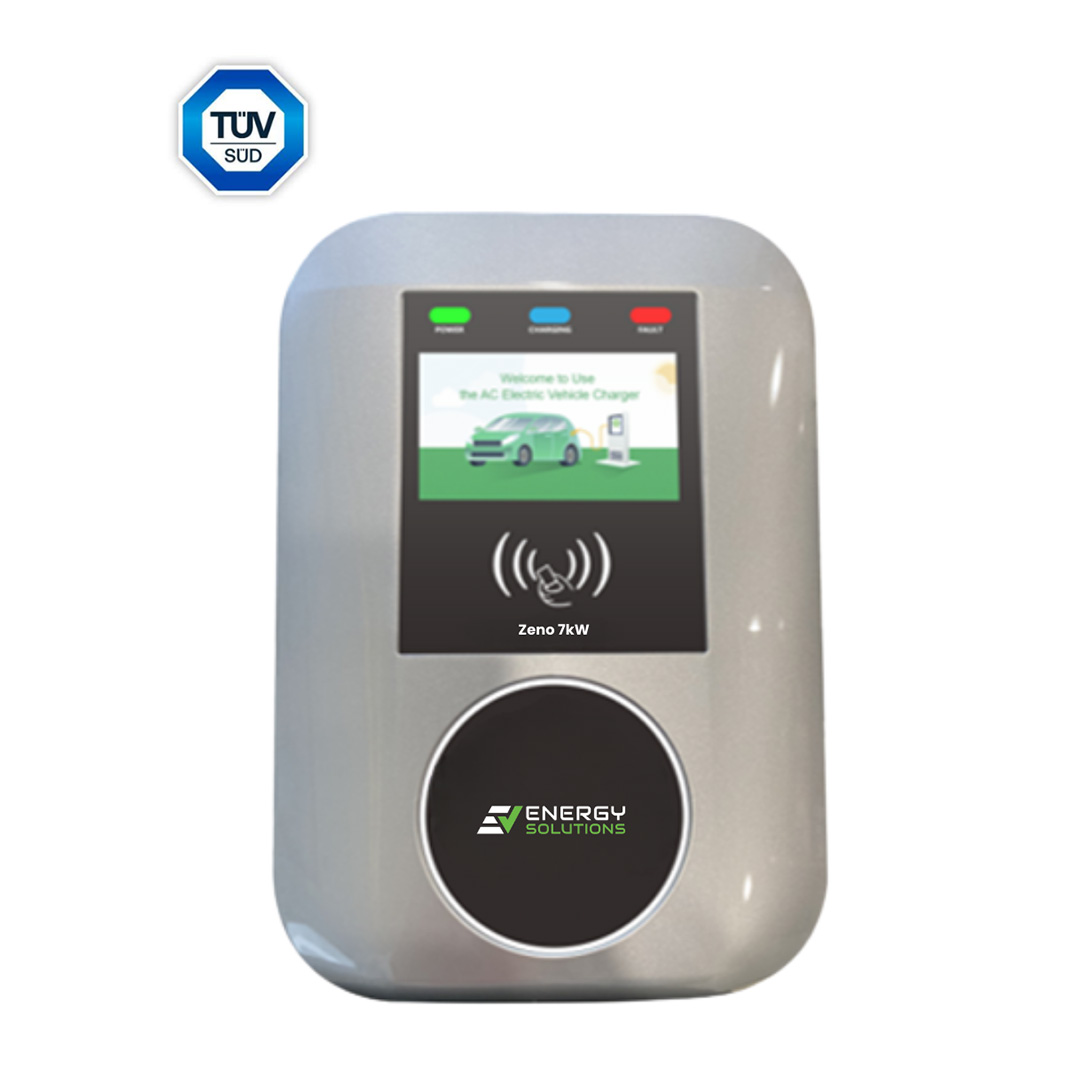

ZENO 7KW AC WALBOX CHARGER

SPECIAL FEATURES

3.5 INCHES LED TOUCH SCREEN
APP (TUYA)
WITH CT AND LOAD BALANCING
IP65 RATED
IK08 RATED
TUV CERTIFIED
MATERIAL: PC+ASA

Home Use

SKU AC-EVM-2401-T2-3KW-A-1 Categories AC Charger, Home Charger Tags ACcharger, bestEVchargersinUAE, Bestqualitycarcharger, EVcharger, Evchargerexporter, EVchargersUAE, Evchargersupplier, fastcharger, HighqualityEVchargers, smartEVchargers

High efficiency

High-power AC output, fill your car up quickly, make your trip more smooth.
Up to 98% power factor, up to 95% charging efficiency, reduce energy waste, economic and environmental protection.

Excellent adaptability

Strong adaptability to application environment: it can be installed outdoors or indoors.
Optional installation mode: wall mountng.

Intelligent control

Equipped with international general OCPP-1.6 communication protocol, can be connected to the user’s background management platform.
Can charge by RFID swip card, calculate charging fees for users to provide commercial functions.
Touch screen control, convenient for maintenance personnel.
Bluetooth/Wifi/Ethernet/4G a variety of communication methods available for selection.

All-round security protection

Provide users with safe charging experience we have voltage, current, temperature, grounding, lighting, leakage protection and other electrical protection to ensure the normal use of users.
The product reached the IK08 protection level, and passes the strict safety test before leaving the factory to ensure the safety performance of each product.

Product Description

Environment

Temperature: -30°C ~ 55°C
Humidity: 5% to 95%, non-condensing
Altitude height: 2000m
Size: 23*33*10 cm

Electrical

RCD: Type A+DC 6mA
Input voltage: 1/N/PE ~ 230V
Input frequency: 50Hz
The max power: 7kW
Electric relay specification: 50A 250VA
Rated Output: max output 32A
Cable Length: 5 meter output cable, no input cable in default

Structure

Charging: RFID(Optional) card/plug and charge/APP/Reservation charging
Application: Indoor/Outdoor

Optional Function

Load Balance: CT+Single Phase Meter
OCPP: 4G/Ethernet
Screen: Screen is removable if not needed
